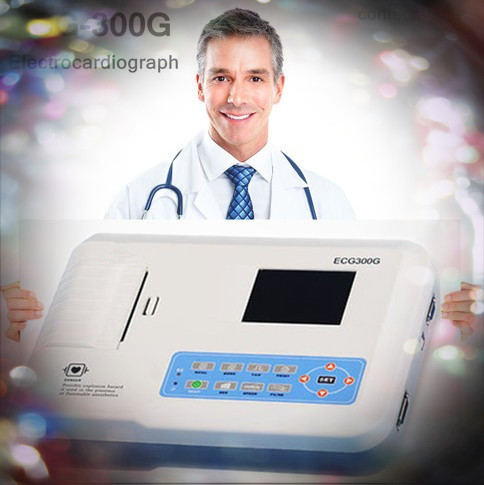

ECG-300G Digital 3-Channel ECG with Printer PC Software CE approve 3.5 TFT
| Place of Origin: | Hebei, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
ECG-300G Digital 3-Channel ECG with Printer PC Software CE approve 3.5 TFT .5" TFT Color LCD display shows the working status and ECG waveform.
ECG-300G Electrocardiogragh
Introductions
ECG300G three channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously
and prints out the ECG waveforms with thermal printing system. Its functions are as follows:recording and displaying
ECG waveforms in auto/manual mode;auto-measuring and auto-diagnosing the ECG wave parameters;prompting
the state of lead off and paper lack;switching the interface lauguages (Chinese/English);managing the case database.
ECG300G three channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously
and prints out the ECG waveforms with thermal printing system. Its functions are as follows:recording and displaying
ECG waveforms in auto/manual mode;auto-measuring and auto-diagnosing the ECG wave parameters;prompting
the state of lead off and paper lack;switching the interface lauguages (Chinese/English);managing the case database.
Features
3.5" TFT Color LCD display shows the working status and ECG waveform.
Check the waveform before printing to save record paper.
12 leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter,baseline filter and EMG filter of the ECG signals.
Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc. to be easy for interpretation.
Include multiform printing modes and format, such as auto 3*4 +1, auto 3*4, auto 2*6 +1, auto 2*6, auto 4*3, rhythm 4, rhythm 3, rhythm 2 and manual etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.
The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter,provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) etc and auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency.
The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery.It can standby for 4 hours, print 150 pieces of ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination.
It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for the doctor review and statistic.
Support Chinese, English, Spanish, Turkish, Polish, Spanish, French, German Operating interface, can print out Chinese, English, Polish report.
3.5" TFT Color LCD display shows the working status and ECG waveform.
Check the waveform before printing to save record paper.
12 leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter,baseline filter and EMG filter of the ECG signals.
Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc. to be easy for interpretation.
Include multiform printing modes and format, such as auto 3*4 +1, auto 3*4, auto 2*6 +1, auto 2*6, auto 4*3, rhythm 4, rhythm 3, rhythm 2 and manual etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.
The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter,provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) etc and auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency.
The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery.It can standby for 4 hours, print 150 pieces of ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination.
It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for the doctor review and statistic.
Support Chinese, English, Spanish, Turkish, Polish, Spanish, French, German Operating interface, can print out Chinese, English, Polish report.
Technical Specification
Safety Type: Class I, Type CF applied part,which has defibrillation-proof applied part
Lead : Standard 12 leads
Input way: Floating and defibrillation protection
Patient leak current : <10μA
Sampling rate : 1000Hz
A/D conversion: 12bit
Frequency response: 0.05Hz~150Hz (-3dB, + 0.4dB)
Time constant: >3.2s
CMRR: >60dB, >100dB( With AC filter)
Enduring polarization voltage: ±500mV
Noise level: ≤15μVp-p
EMG interference filter: 25Hz/35Hz (-3dB)
AC filter: 50Hz/60Hz (≥20dB)
Recording way : Thermal printing system(8spots/mm)
Recording paper: 80mm(W)×20m(L)
Sensitivity: 2.5mm/mV 5mm/mV 10mm/mV 20mm/mV 40mm/mV
Paper speed:
Auto-mode: 25mm/s, 50mm/s
Manual-mode: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
Power supply: AC:100/240V,50/60Hz
DC:7.4V, 3700 mAh rechargeable lithium battery
Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power Supply:220V)
Size: 315mm(L) x 215mm(W) x 77mm(H)
Net Weight: 2.25Kg
Accessories:
ECG leads 1 set
Limb electrode clamp 1 set
Chest electrode 1 set
Power connection 1 piece
Ground wire 1 set
User manual 1 set
Option:
ECG-Sync software, connect with the PC by USB connector to form a ECG workstation,
collect real-time data to the software to analyze and print the report,
and can update the old cases in the ECG machine to PC.
It has optional functions of FCG, HFECG, QTd, HRV analysis etc.
Certification
CE,CCC
Safety Type: Class I, Type CF applied part,which has defibrillation-proof applied part
Lead : Standard 12 leads
Input way: Floating and defibrillation protection
Patient leak current : <10μA
Sampling rate : 1000Hz
A/D conversion: 12bit
Frequency response: 0.05Hz~150Hz (-3dB, + 0.4dB)
Time constant: >3.2s
CMRR: >60dB, >100dB( With AC filter)
Enduring polarization voltage: ±500mV
Noise level: ≤15μVp-p
EMG interference filter: 25Hz/35Hz (-3dB)
AC filter: 50Hz/60Hz (≥20dB)
Recording way : Thermal printing system(8spots/mm)
Recording paper: 80mm(W)×20m(L)
Sensitivity: 2.5mm/mV 5mm/mV 10mm/mV 20mm/mV 40mm/mV
Paper speed:
Auto-mode: 25mm/s, 50mm/s
Manual-mode: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
Power supply: AC:100/240V,50/60Hz
DC:7.4V, 3700 mAh rechargeable lithium battery
Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power Supply:220V)
Size: 315mm(L) x 215mm(W) x 77mm(H)
Net Weight: 2.25Kg
Accessories:
ECG leads 1 set
Limb electrode clamp 1 set
Chest electrode 1 set
Power connection 1 piece
Ground wire 1 set
User manual 1 set
Option:
ECG-Sync software, connect with the PC by USB connector to form a ECG workstation,
collect real-time data to the software to analyze and print the report,
and can update the old cases in the ECG machine to PC.
It has optional functions of FCG, HFECG, QTd, HRV analysis etc.
Certification
CE,CCC
